Photo Gallery
Five safety sensors on the footrest and carriage stop the lift automatically if any obstruction is encountered.
Two remote controls are provided so that you can have the convenience of being able to share the stairlift with a loved one.
Folding arms, footrest, and seat allow easy access to the stairway.

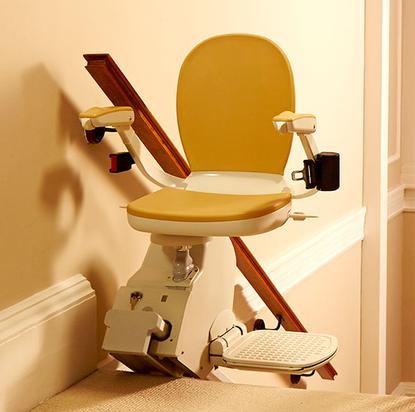

Brooks Stairlift by Acorn
Stay in your home and continue to enjoy your independence.
The Brooks Straight Stairlift is an economical solution designed to suit your individual home and lifestyle. With a range of features and options, the Brooks stairlift is an easy to use stairlift designed for the straight staircase.
Call us for your FREE in-home evaluation and estimate. Our friendly and experienced professionals will provide all the information you need.
The Brooks stairlift fits to the stairs, not the wall
Requires no structural changes to your home
Smooth start and stop, ensuring a safe and comfortable ride
- Outdoor option available
- Hinged rail available
- Affordable and reliable
- Easily folds up, so everyone can continue to use the stairs
New * Reconditioned * Sales * Rentals
Diagnostic digital display informs the user of the status of the lift.

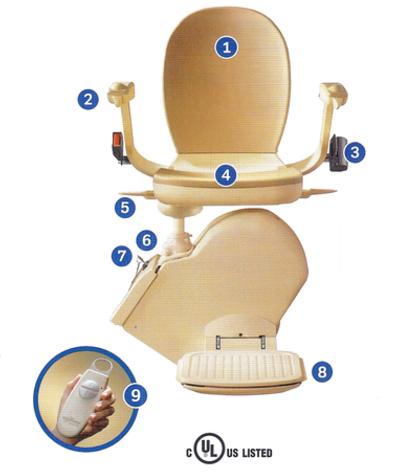

Key Features
Easy to use controls in both armrests.
Padded seat and backrest for maximum comfort.
Lockable on/off switch allows the user to prevent others (e.g. children) from using the lift.
Secure, retractable safety belt.
|

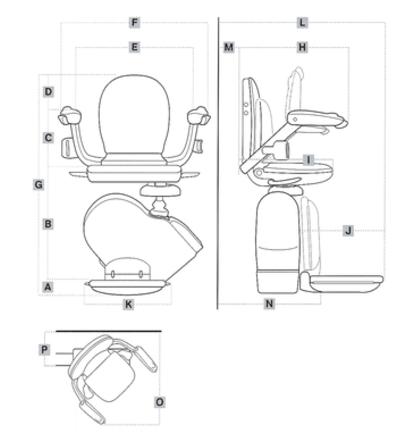

Dimensions |
inch |
mm |
||
|
A |
Floor to top of footrest |
3 ¾ |
95 |
|
|
B |
Top of
footrest to top of seat |
17 ½ |
445 |
|
|
C |
Top of seat to top of arms |
9 ¾ |
250 |
|
|
D |
Top of arms to top of seat back |
7 ½ |
190 |
|
|
E |
Width
between armrests (wide arm version) |
17 ½ (19 ½) |
445 (495) |
|
|
F |
Overall width |
23 ¾ |
605 |
|
|
G |
Overall height |
38 ½ |
980 |
|
|
H |
Length of arms from seat back |
18 ½ |
470 |
|
|
I |
Length of seat base from seat back |
17 |
435 |
|
|
J |
Length of
footrest |
12 ¾ |
325 |
|
|
K |
Width of
footrest |
12 ¼ |
310 |
|
|
L |
Front of footrest
to stringer |
22 ½ |
570 |
|
|
M |
Back of seat
to stringer |
½ |
13 |
|
|
N |
Folded width |
12 ¼ |
310 |
|
|
O |
Minimum width required to swivel at top |
26 ¼ |
670 |
|
|
P |
Distance from front of rail to stringer (Wide arm version) |
8 ½ (9 ½) |
215 (240) |
|
|
|
|
|
|
|
|
Specifications |
|
|
||
|
Motor Power |
0.25KW (USA) |
|
||
|
Motor Output Speed |
No greater than 0.15 m/s (US) |
|
||
|
Method of Drive |
Rack and Pinon |
|
||
|
Power Supply |
24V DC (battery) |
|
||
|
Maximum Capacity |
300lbs (option 350lbs) |
|
||
|
Track |
Extruded Aluminum |
|
||
|
Mains Supply |
120V, 1.5 Amp Charger |
|
||
Swivel seat - no need for twisting the body to get on and off the lift.
Sales * Rentals
Installation * Maintenance
