Safety sensors on the footrest and carriage stop the lift automatically if any obstruction is encountered.
Photo Gallery
Easy to use controls in both armrests. Perfect for those with limited dexterity.
|

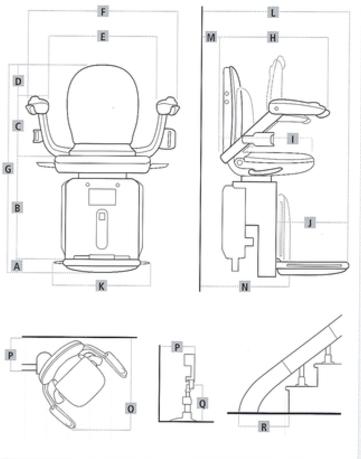

Dimensions |
inch |
mm |
||
|
A |
Floor to top of footrest |
2 |
50 |
|
|
B |
Top of
footrest to top of seat |
19 |
485 |
|
|
C |
Top of seat to top of arms |
9 ¾ |
245 |
|
|
D |
Top of arms to top of seat back |
7 ¾ |
195 |
|
|
E |
Width
between armrests |
19 |
480 |
|
|
F |
Overall width |
24 ¼ |
620 |
|
|
G |
Overall height |
38 ¼ |
975 |
|
|
H |
Length of arms from seat back |
18 |
460 |
|
|
I |
Length of seat base from seat back |
17 |
435 |
|
|
J |
Length of
footrest |
14 ¼ |
360 |
|
|
K |
Width of
footrest |
14 ¾ |
375 |
|
|
L |
Front of footrest
to stringer |
25 ¼ |
640 |
|
|
M |
Back of seat
to stringer |
1 ½ |
35 |
|
|
N |
Folded width |
13 ¼ |
335 |
|
|
O |
Minimum width required to swivel at top |
27 ½ |
700 |
|
|
P |
Distance from front of rail to stringer |
7 |
180 |
|
|
Q |
Height
of leg |
5(min) 25 ½ (max) |
125(min) 650 (max) |
|
|
R |
Front
of drop nose to first stair |
17 ¾ |
450 |
|
|
|
|
|
|
|
|
Specifications |
|
|
||
|
Motor Power |
0.375KW |
|
||
|
Motor Output Speed |
No greater than 0.15 m/s (USA) |
|
||
|
Method of Drive |
Rack and Pinon |
|
||
|
Power Supply |
24V DC (battery) |
|
||
|
Maximum Capacity |
266lbs (option 350lbs) |
|
||
|
Track |
Extruded Aluminum |
|
||
|
Mains Supply |
120V, 1.5 Amp Charger |
|
||
Padded seat and backrest for maximum comfort.
Secure, retractable safety belt.
A lockable swivel seat means you can get on and off your stairlift without twisting your body.
Modular rail allows the rail portion of the lift to be quickly assembled from stock components, enabling faster deliver and installation.
Key Features

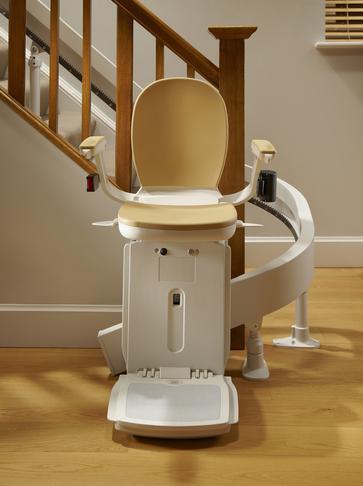

Acorn 180 Curved Stairlift
Independence made easy.
The Acorn 180 Curved Stairlift is revolutionizing the stairlift industry with its nearly endless capabilities. It will fit almost any staircase: straight, curved, multiple landings, wrap-around, and more! With a range of features and options, the Acorn 180 stairlift is an easy to use stairlift designed for the straight staircase.
Call us for your FREE in-home evaluation and estimate. Our friendly and experienced professionals will provide all the information you need.
The Acorn 180 stairlift fits to the stairs, not the wall
Requires no structural changes to your home
Built-in soft start and stop, ensuring a safe and comfortable ride
- Slim and attractive rail system
- Hinged rail available
- Unique self-leveling system adjusts speed and level of seat when going around corners
- Easily folds up, so everyone can continue to use the stairs
Slim fold away design with folding arms, footrest, and seat so others can continue to use the stairs.
Diagnostic digital display informs the user of the status of the lift.
Hand-held remote controls allow users to 'call' and 'send' the lift up and down the staircase.
